SKU: RC-1T5AC

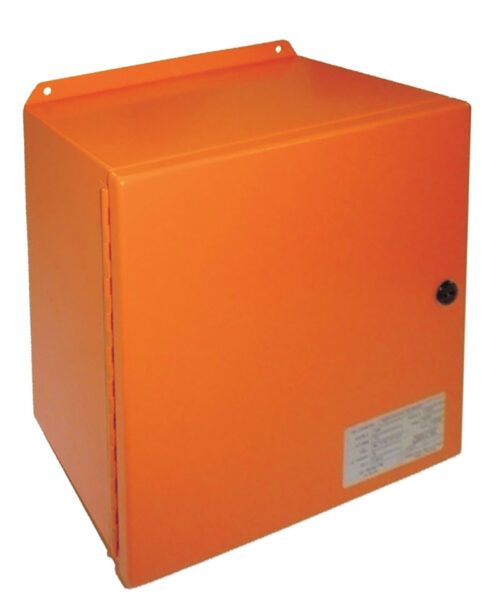

L-854 Radio Receiver/Decoder
Control Industries
Compliances
FAA Type 1, Style A AC; 150/5345-49 (Current Edition)
Specification L-854 Radio Control Equipment
AC 150/5345-1 Approved Airport Lighting Equipment
Application
Provides pilots with direct, unassisted air-to-ground control of airfield lighting systems
Key Features
- Radio Receivers are factory tuned from 118MHz to 136Mhz, to be specified at time of order.
- Adjustable sensitivity from 1mV to 30mV as desired by the user, permitting a control range of 1 to 20 miles. Receivers are shipped normally adjusted to a sensitivity of 10mV.
- Unit provides three (3) 120VAC Control Line Outputs.
- Radio Receivers ship with a 25’ Remote Antenna
- Auto shutoff timer adjustable in 15, 30, 45, and 60 minute intervals.
- Remote disable terminals to allow easy hook-up to an external switch or photo sensor.
- Decoder lock feature to lock unit on the last input selection signal until the time-out reset.
- Input Power: 120V or 240VAC 50/60Hz
- Made in the USA by Control Industries Inc.
General Catalog Numbers
RC-1T5AC Radio Receiver, 120V, w/25’ Remote Antenna
