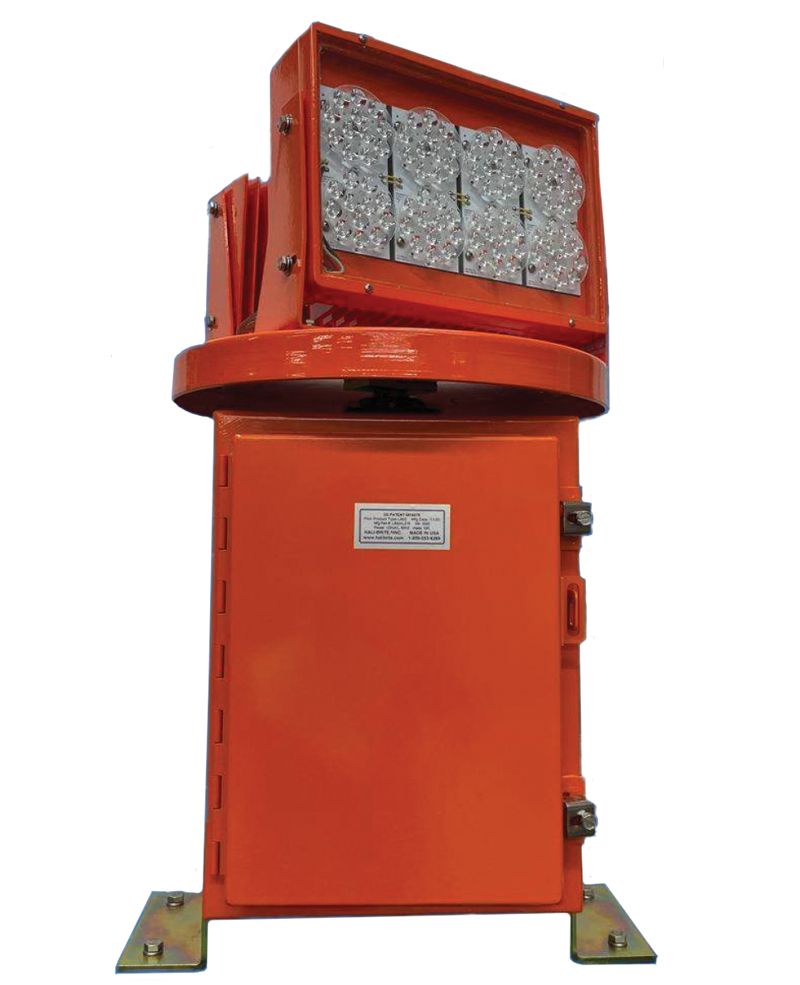

L802A(L) Hali-Brite® LED Rotating Heliport Beacon


Compliant with Standards:
FAA: L-802A(L) A/C150/5345-12F Medium Intensity Airport Beacon.
ICAO: Annex 14, Volume 1


Designed primarily for night operation as identification and location markers for airports.

Key Features
  • 75% Power reduction over traditional metal halide lamps
  • Instant on- no more waiting for bulbs to get to full bright!
  • FAA Certificate of Conformance: L-802A(L)-High Intensity Airport Beacon (AC 150/5345-12F)
  • ICAO: Aerodromes, Annex 14, Volume 1, Eighth Edition. Photometry – Chapter 5, Sec. and
  • Chromaticity – Appendix 1 Section 2.3.1
  • One white LED lamp, One aviation green LED lamp
  • 50,000 hour typical lamp life (12 years)
  • Patented belt-drive system eliminates the lubrication required by conventional gear-drive beacons (U.S. Pat. 5,339,224)
  • 50,000 hour typical lamp life (12 years)
  • Lamps preset 5˚ above horizontal, adjustable
  • Optional stainless steel cabinet & bearings for highly corrosive environments
  • Class I (No Heater) normal operating temperature range: 0°F to +131°F (-18°C to +55°C)
  • Class 2 (With Heater) normal operating temperature range: -67°F to +131°F (-55°C to +55°C)
  • Heater thermostatically controlled to engage at 0°F
  • Optional tell-tale relay (monitors lamps and triggers dry contact on outage)
  • Power Consumption L802A(L): Class I; 195W, Class II; 595W
  • Manufactured in the USA
  • AIP Buy American qualified
