SKU: L-801-h

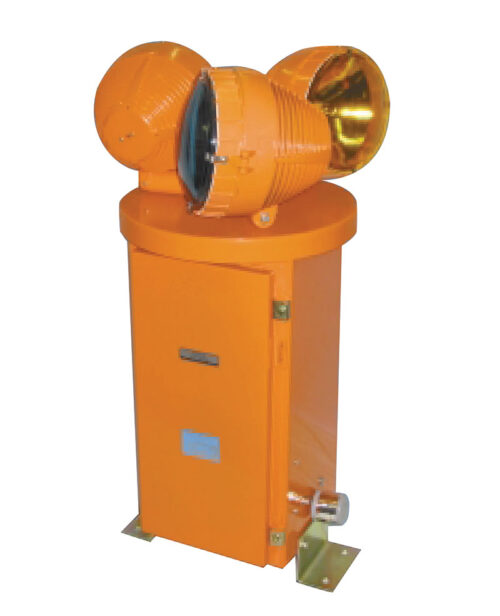

L-801H and L-802H HBM 150/3 Heliport Rotating Beacons

Compliances

Compliant with Standards:
FAA: L-801H AC 150/5345-12 (Current Edition)
FAA: L-802H AC 150/5345-12 (Current Edition) / ICAO: Annex 14, para 5.3.3

Applications

These Hali-Brite beacons are designed for night operation as identification and location markers for heliports

Key Features
  • Patented belt-drive system eliminates the lubrication maintenance required by conventional gear-drive beacons (U.S. Pat. 5,339,224)
  • Patented liquid-filled lamp connector, eliminating the slip rings and brushes found on conventional beacons (U.S. Pat. 5,816,678)
  • Three 14,000 lumen, 150 watt metal-halide lamps
  • 12,000 hour typical lamp life (3 years)
  • One clear, one aviation green, and one yellow lens
  • Available in Hospital Heliport version (not FAA certifiable)
  • No maintenance except lamp replacement
  • All moving parts are permanently lubricated
  • Impedance-protected motor eliminates burnouts
  • Lamps preset 5° above horizontal, adjustable
  • 12 RPM rotation, 36 flashes/minute
  • Weatherproof steel cabinet, powder coated international orange
  • Optional stainless steel cabinet & bearings for highly corrosive enrivonments
  • Class I temperature range: -30 to +55 °C (-22 to +131 °F)
  • Class II temperature range: -55 to +55 °C (-67 to +131 °F)
  • Tested to wind velocities of 100 mph
  • Optional photocell and/or tell-tale relay
  • Mountable on a Hali-Brite Tipdown Pole
  • Military version available
  • Power Consumption: 595W Class I, 995W Class II
  • Manufactured in the USA
Ordering Information

L-801H and L-802H HBM 150/3 Heliport Rotating Beacons
