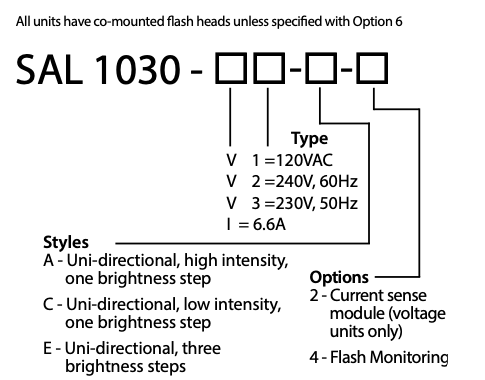

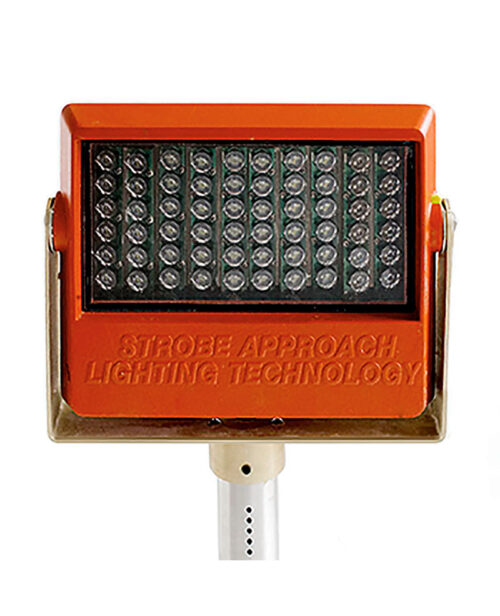

L-849 (L) Runway End Identification Light LED REILS – SAL 1030

Certified to FAA AC 150/5345-51 (Current Edition) FAA Engineering Brief No. 67 (Current Edition)

[MAN] L849(L) PSUC – 1030I Rev 1.3

[MAN] L849(L) PSUV – 1030V Rev 1.2

[CoC] L-849(L) Styles A,C,E Runway End Identification Light Rev 2-9-23

LED REIL provides a visual indication to pilots of the runway threshold during an approach.

• Superior quality and unmatched technical support
• Low Power Draw – entire system draws less than 40 Watts
• Nominal intensity – 22,000 effective candelas
• Beam Coverage – 10° vertically, 30° horizontally
• Flash rate: two flashes per second
• Separation: Control unit can be mounted in
• excess of 500 feet from flash head
• Remote Control: Four-position selector switch
• or Series Lighting Circuit current sensing
• Meets photometric beam requirements for
• MALSR, SSALR, and ALSF-I / II
• Voltage-powered
  • 120 VAC, 50 Hz or 60 Hz
  • 230 VAC, 50Hz
  • 240 VAC, 50Hz or 60 Hz
• Current-powered
  • 2.8 to 6.6 amperes
  • No power adapter required – True RMS current sensing
  • Operates from (2) L-830-4s
