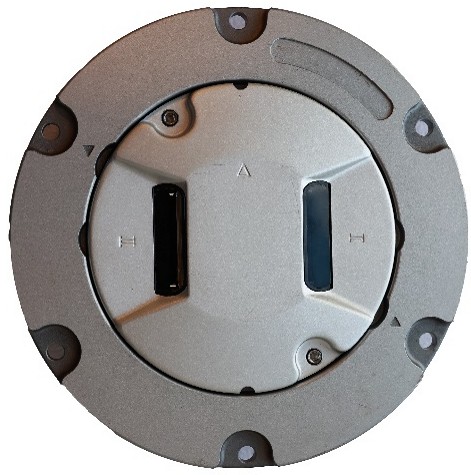

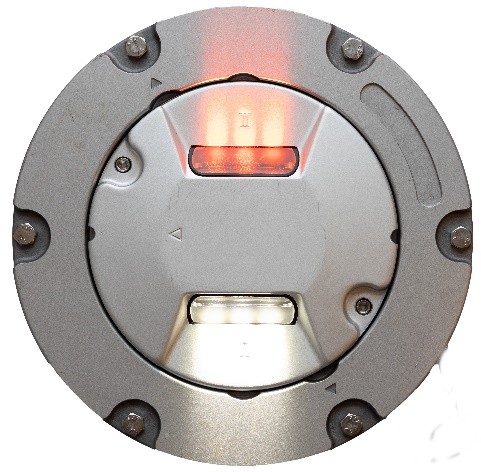

LED L-850A Runway Centerline Inset Light

Certified to FAA AC 150/5345-46 (Current Edition)

FAA Engineering Brief No. 67 (Current Edition)

Transport Canada TP312 5^th Edition

CASA Part 139

ICAO Annex 14

[CoC] L-850A(L) and B(L) 1-15-26

[TVOC] CASA 8” Inset, Runway Centerline, Runway Touchdown Zone, Light Source LED, Red-White, Rev 2-2-26

[TVOC] ICAO 8” Inset, Runway Centerline, Runway Touchdown Zone, Light Source LED, Red-White, Rev 2-2-26

[TVOC] TP312 8” Inset, Runway Centerline, Runway Touchdown Zone, Light Source LED, Red-White, Rev 2-2-26

FAA Type L-850A(L) is an in-pavement, low-profile, high intensity LED inset light used to provide pilot guidance of the runway centerline on Category II and III runways. Use of bi-directional White and Red lights to guide pilots.

• Low profile <25” (6mm) FAA Style 3
• Light weight aluminum forging top section superior mechanical strength and durability
• Easily replaceable non-sealed type prism
• Long life LED, > 50,000 hours
• Direct mounting on standard FAA L-868 Base with FAA Support Ring
• Compatible with all CCR types
• Protection Class: IP68
