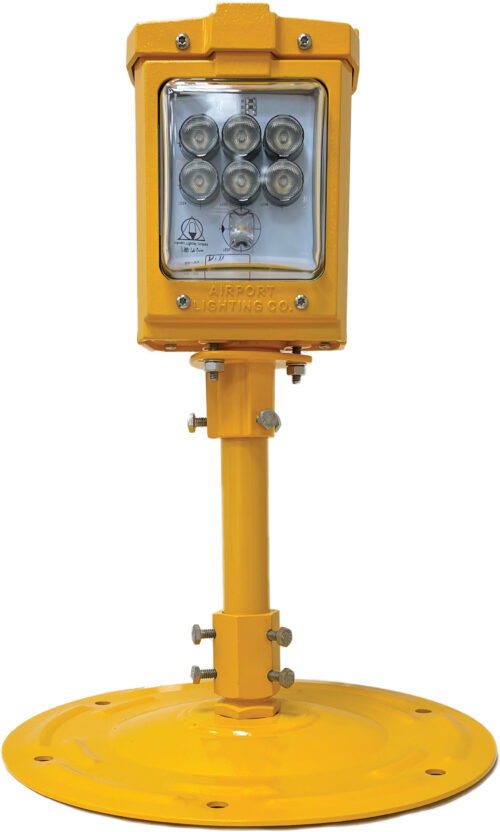

L-862 (L) High Intensity LED Light

Elevated High Intensity Runway Light LED Rev 3 – User Manual

L-862(L) & L-862E(L) HIRL LED, Rev 0 Sample Specification

[TVOC] TP312 Elevated Light – Threshold Green – End Red – Edge Red White Yellow, LED Rev 4-26-21

[TVOC] ICAO Elevated Light – Threshold Green – End Red – Edge Red White Yellow, LED Rev 4-26-21

[TVOC] CASA Elevated Light – Threshold Green – End Red – Edge Red White Yellow, LED Rev 3-20-23

[CoC] L-862(L), L-862E(L) High Intensity Runway Light, LED Rev 5-5-22

Runway Edge, Threshold, Displaced Threshold, Threshold/End, Displaced Threshold Precision IFR Runways

• LEDs with expected life in excess of 56,000 hours.
• Light clarity ensured for years with glass lens.
• Dimmable to FAA intensity curve from 2.8 amp to 6.6 amps.
• Bidirectional fixtures use 65W, unidirectional fixtures use 45W
• Plug and Know circuit design. Dynamic controller senses the attached light engines, allowing for greater service flexibility.
• Daytime recognition provided on lens retainers.
• Leveling surface and sighting cross on cap eliminates the need for an aiming device.
• Fixture surface area designed to meet LED thermal requirements.
