SKU: L-806-Windcone

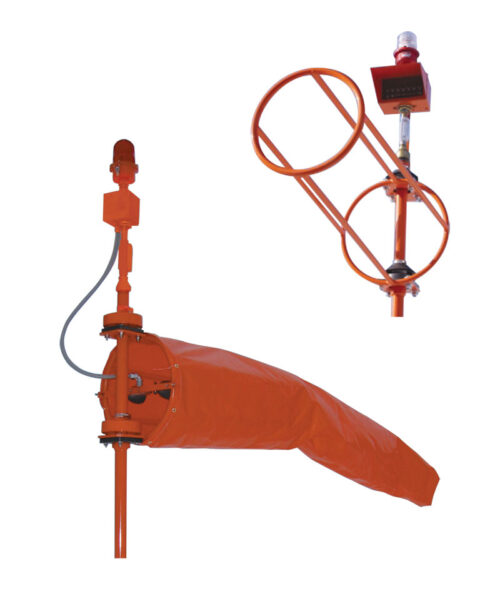

L-806 Wind Cone


Compliant with Standards:
FAA: L-806 AC 150/5345-27 (Current Edition) ETL Certified


These Hali-Brite wind cones provide visual indication of wind direction and velocity at a location on an airfield. They are used on smaller airfields, heliports and as supplemental wind indicators near runway touchdown areas on large airfields.

Key Features
  • Available externally lighted, internally lighted, or unlighted
  • LED or halogen lamps
  • The LED models feature:
    • 50,000 to 100,000 hour lamp life, virtually maintenane free -Multiple lamp circuits, for improved reliability
    • 80-90% less power consumption than halogen lamps
    • A long-life LED obstruction light
  • Integral power adapter on externally-lighted, series- circuit LED models
  • Incandescent L-810 obstruction light included on halogen lighted models
  • Size 1 (18” diameter x 8’ long) wind sock
  • 1.9” diameter steel pole, with frangible coupling at base
  • One piece welded aluminum basket with pre-installed bearings
  • Raincaps protect the bearings from weather
  • May be mounted directly to an L-867 light base, 2 inch NPT base plate (sold separately)
  • The nylon sock is treated for rot, mildew, and water repellency
  • Powder coat painted international orange
