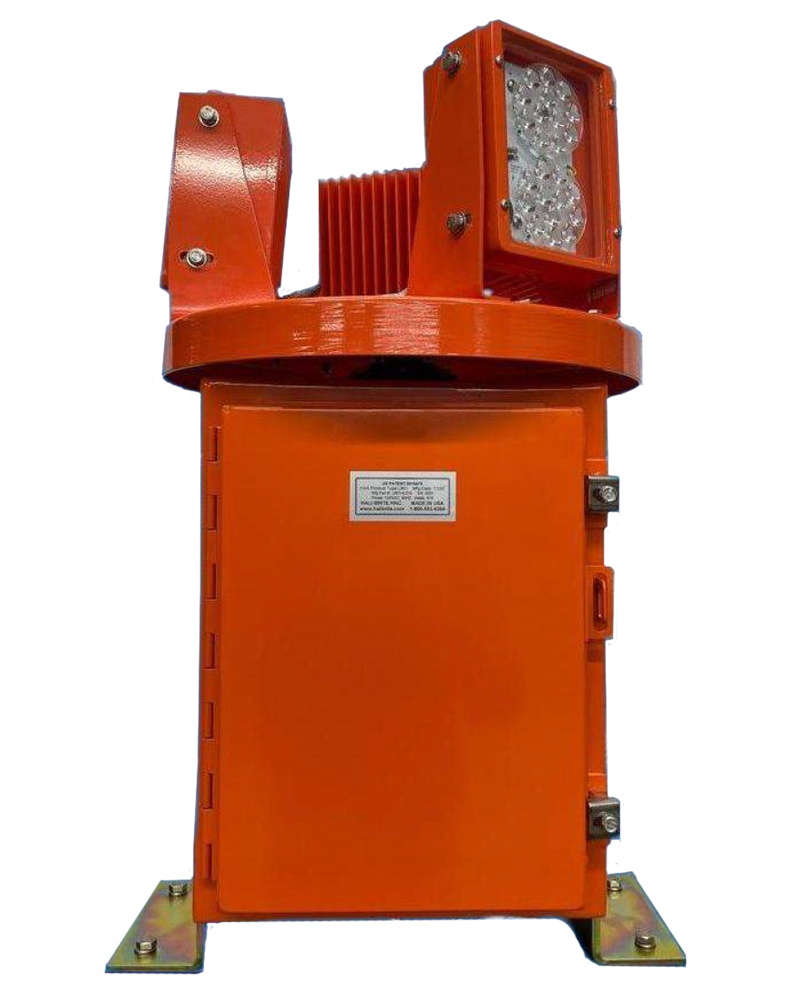

L801H(L) Hali-Brite® LED Rotating Heliport Beacon

Compliances

Compliant with Standards:
FAA: L-801H A/C150/5345-12F (Current Edition)

Applications

Designed primarily for night operation as identification and location markers for airports.

Key Features
  • FAA ETL Certified L-801H A/C150/5345-12F
  • 80% Power reduction over traditional metal halide lamps
  • Instant on- no more waiting for bulbs to get to full bright! Perfect for hospital heliports
  • Less light pollution! Defined light beam provides less light “wash” in the sky and on neighborhoods
  • FAA Certificate of Conformance: L-801H(L)-Medium Intensity Heliport Beacon (AC 150/5345-12F)
  • Patented belt-drive system eliminates the lubrication required by conventional gear-drive beacons (U.S. Pat. 5,339,224)
  • 50,000 hour typical lamp life (12 years)
  • One white LED lamp, one aviation green LED lamp, one amber LED lamp
  • All moving parts are permanently lubricated
  • Lamps preset 5˚ above horizontal, adjustable
  • 12 RPM rotation, 36 flashes/minute
  • Weatherproof steel cabinet, powder coated international orange
  • Optional stainless steel cabinet & bearings for highly corrosive environments
  • Class I (No Heater) normal operating temperature range: 0°F to +131°F (-18°C to +55°C)
  • Class 2 (With Heater) normal operating temperature range: -67°F to +131°F (-55°C to +55°C)
  • Heater thermostatically controlled to engage at 0°F
  • Tested to wind velocities of 100 mph
  • Optional photocell and/or tell-tale relay
  • Mountable on a Hali-Brite Tipdown Pole
  • Power Consumption L-801H(L): Class I; 116W, Class II; 516W
  • Manufactured in the USA
