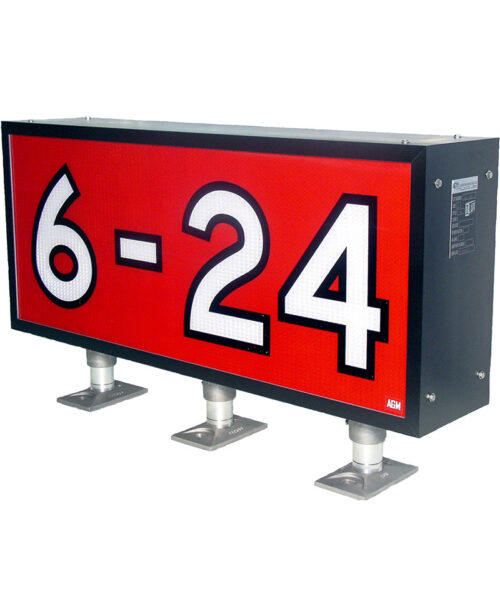

L-858 I-LUX Guidance Signs

Certified to FAA AC 150/5345-44 (Current Edition)
FAA Engineering Brief No. 67
ICAO Annex 14 Sixth Edition
TP312E 4th Edition

• I-LUX LED Retrofit Manual 2017
• I-Lux Owner Manual 2015 Rev1.1 LED BOARD INFO ONLY
• Size 4 I-Lux Owners Manual LED BOARD INFO ONLY
• [MAN] I-Lux TP312 Owners Manual Rev 0
• [MAN] I-Lux ICAO Owner’s Manual Rev 1
• Unlighted I-Lux Owners Manual 2015 Rev1.0

[CoC] L-858(L) ILUX LED Signs Runway and Taxiway Rev 3-8-24

[TVOC] ICAO 800mm Code 3, 4 Mandatory, Direction, Location Sign Rev 10-11-23

[TVOC] ICAO 600mm, Code 1 or 2 Mandatory, Code 3 or 4 Direction, Location Sign Rev 12-20-23

Transport Canada Aerodrome Standards and Recommended Practices, Land Aerodromes, TP312, 5th Edition, Effective date: September 15, 2015

• Easily replace traditional L-858 signs
• Solidly & seamlessly integrate off-the-shelf parts and custom fabrication for strength & flexibility while minimizing operating costs
• Platform for cabinet machined from solid, heavy-gauge aluminum construction
• Free of gaps and joints that weaken modular signs and allow penetration of wind, rain, dirt and snow
• Inherently stronger than modular signs because it doesn’t rely on the strength of hardware used to piece modular signs together
• I-Lux is as short as possible because it is made per FAA lettering specifications & not artifically lengthened over seams and gaps
• AGM’s I-Lux is the only airfield sign available in half module sizing
• Quick and economical installation, with smaller excavation, less concrete, and fewer legs to bolt to the pad
• Smaller obstruction in the field than modular signs, presenting less inertial load on aircrafts should a collision occur
• Seamless panels display messages without distortion
• Highly impact resistant, up to 30 times more than other brands
• No tools required for re-lamping
• Base model brightness controls use technology that has been proven for years in the field
• Optional Style U power control system – a passive, non-inductive design that exhibits near- unity power factors on all regulator steps
• Available in energy saving LED
