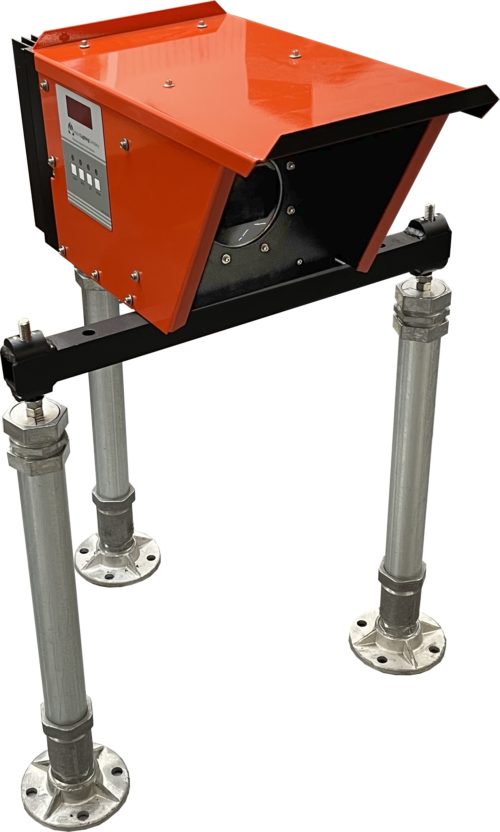

L-880(L)/L-881(L) LED Precision Approach Path Indicator Lighting (PAPI)

Certified to FAA AC 150/5345-28 (Current Edition)

EB67 (Current Edition)

[MAN] Precision Approach Path Indicator (PAPI) LED Rev 15

[MAN] 88-00825 User Manual Rev 0

[MAN] 88-00205 Installation Manual Rev 2

[CoC] L-880(L) Precision Approach Path Indicator Rev 2-18-22

[CoC] L-881(L) Abbreviated Precision Approach Path Indicator Rev 2-18-22

[TVOC] ICAO Visual Approach Path System (PAPI & APAPI), LED Rev 4-7-22

[TVOC] CASA Visual Approach Path System (PAPI & APAPI) Rev 4-7-22

[TVOC] EASA Visual Approach Path System (PAPI & APAPI), LED Rev 4-7-22

This system enhances safety by providing visual approach slope guidance to assist the pilot of an aircraft in flying a stabilized approach.

• Reliable photometric performance
• Redundant Lens Heater for safe, uninterrupted operation
• Estimated Life of LEDS > 150,000 hours
• Digital LED Display indicates status without opening
• No optical bench or special tools required for servicing
• Compact and Light Weight (less than 40 lbs per LHA)
• Intuitive design of digital aiming/tilt sensor simplifies setting elevation angles
• Interlock feature allows PAPI operation only in conjunction with runway lights
